Toggle Clamp – Miniature Flip-down Style

Description

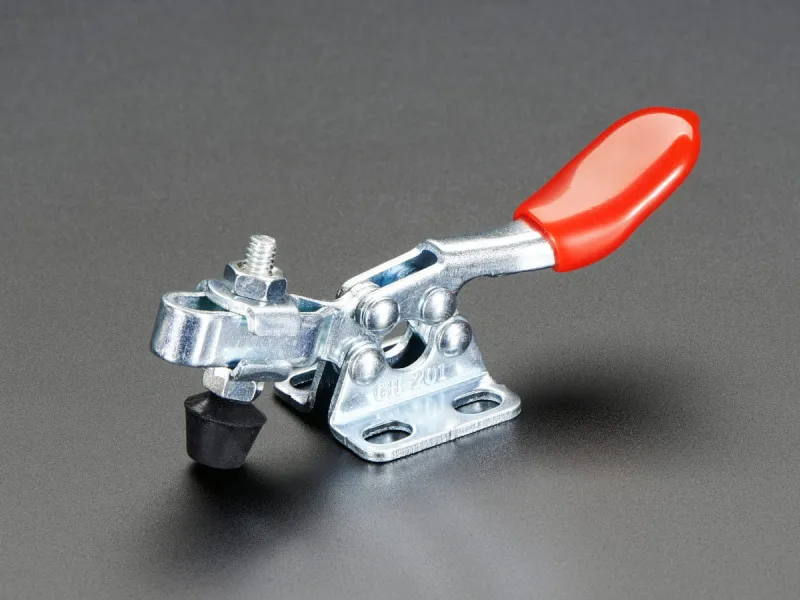

Toggle Clamp – Small Flip-down Style
☑ Lifetime warranty on all tools
☑ Tools have lifetime replacement guarantee
⇒ Get Your Hands on Durable Hardware

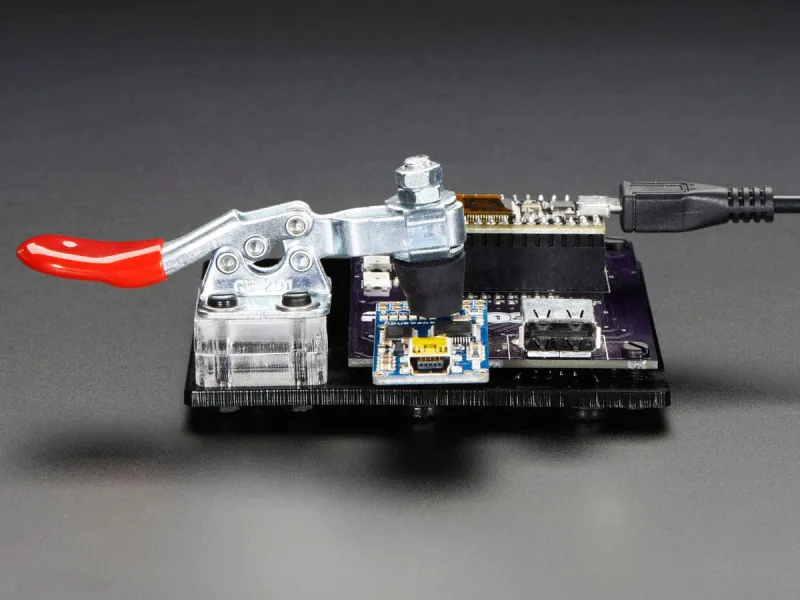

*Ka-thunk* Pin down that PCB with our Toggle Clamp, a sturdy and reliable way to speedily press and release with precision! A pogo-pin bed is a great way to connect and test boards without any soldering, but you have to somehow get that PCB aligned right and evenly pressed down on each pogo. After much experimenting, we settled on this toggle clamp and we use it all the time in our testing processes.

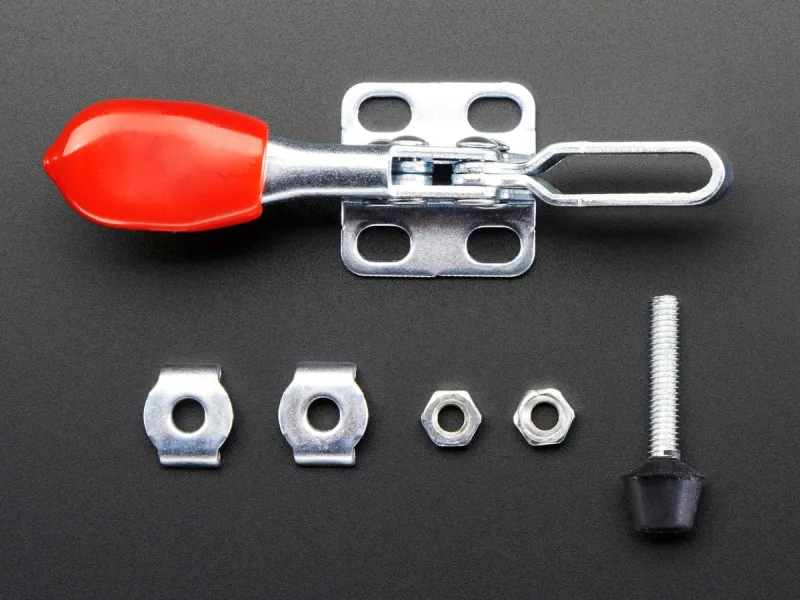

This beauty is strong enough to grip onto a PCB, but the rounded rubber tip ensures it won’t mar or damage any circuits. You’ll need to bolt it securely, then attach the rubberized nub with the included hex nuts. The height of the nub can be adjusted, as can the location along the clamp.

This is the small-size flip-down type toggle clamp. Click here for a spacious size or here for the medium flip-up type.

Technical Details

• Diagram
• Weight: 30g / 0.07 lbs
