Lazy Susan Middle Hinge – Salice Silentia Plus Logica Yielding Close 155 Degree Hinge w/ 0MM Mounting Plate – A or B Bore

Description

Lazy Susan Middle Hinge – Salice Silentia Plus Logica Soft ★ Lifetime warranty on all parts ★ Includes all necessary mounting hardware → Customize Window Mechanisms Here

Hinge:

Salice Silentia Plus Soft Close 155 degree Hinges. Broad angle, Zero protrusion. For doors 16mm (min) to 28mm (max) thickness. 13.5mm (17/32″) deep cup, 35mm cup dia. Full Overlay, Logica.

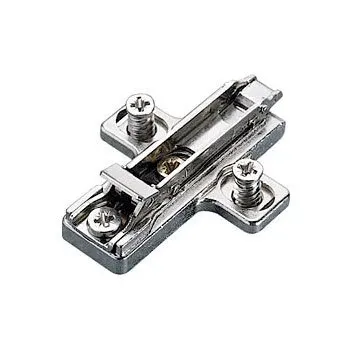

Base Plate:

Salice Clip-On Plates. With cam adjustment: a quick turn of the frontal adjustment or vertical adjustment screw automatically positions the hinge. The hinge stays tight. For operate with ALL Salice hinges. Diecast. 37 x 32 Euro Screw Pre-Mounted.

• This is for one mount & one hinge.
• The 2nd door of the Lazy Susan setup will not need boring with this hinge.
• Note: Screws are not needed on the cup side and only required on one end of the hinge and they are sold separately.

Hinge – C2JKAE9 & Base Plate – BARGR 09/16
