Description
High-Precision ADC HAT For Raspberry Pi (10-Channel 32-Bit) ✔ 100,000 Mechanical Operations Guaranteed ✔ 5-Year Manufacturer Warranty 🛒 Install Safety Equipment Now

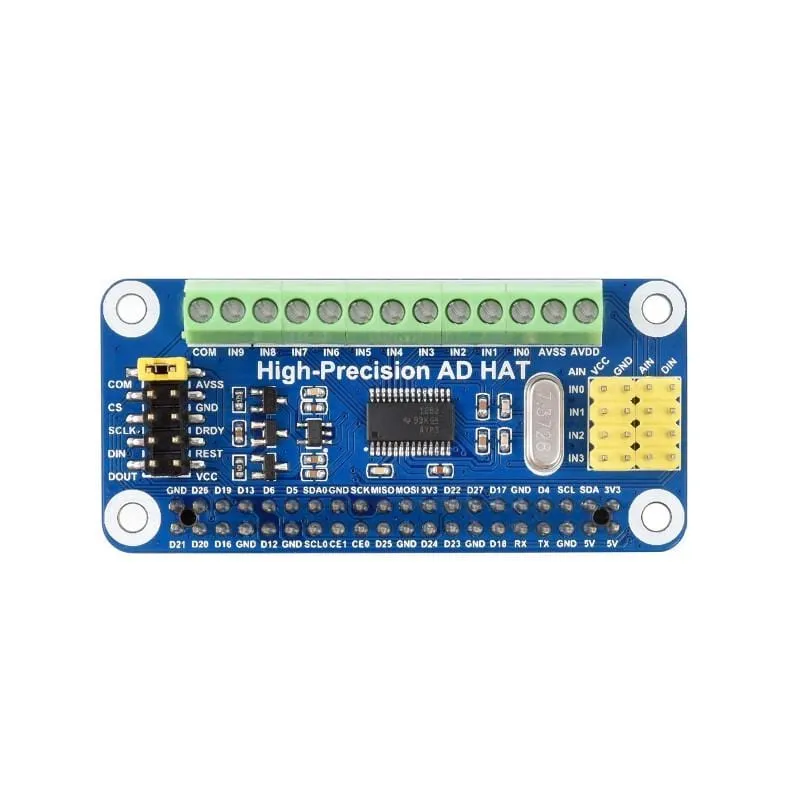

This 10-channel 32-bit High Precision ADC HAT for the Raspberry Pi offers an spot-on solution for reading analogue sensors in your project.

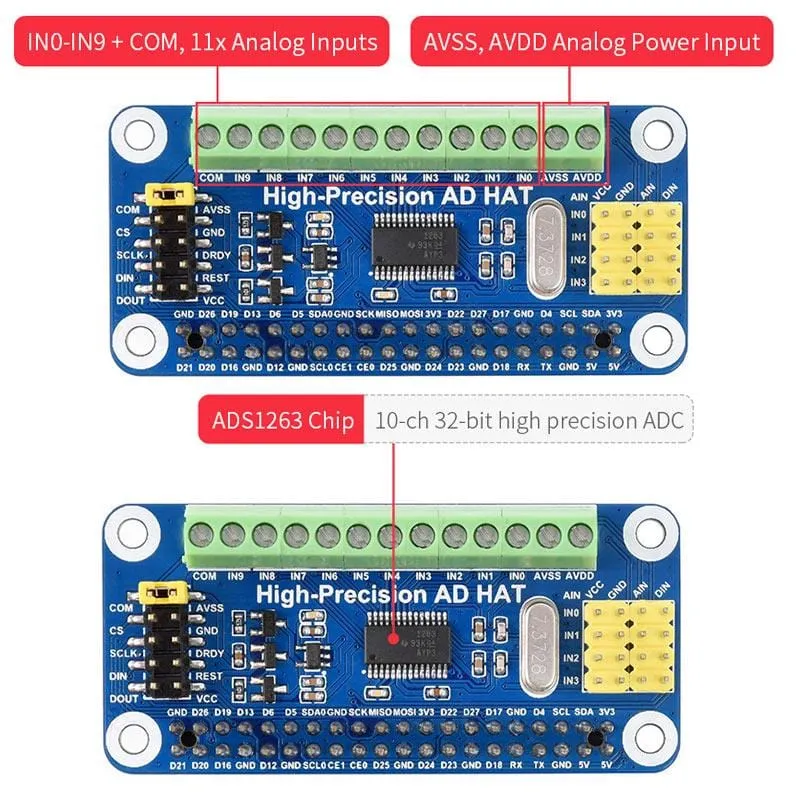

The HAT uses a Ti ADS1263 chip and supplies a host of helpful features for both reading sensor data and supporting your overall project. The AD input header can read both single-end inputs or differential inputs with a pinout that matches most Waveshare sensors. Headers are also provided for host control and ADC ground reference configuration.

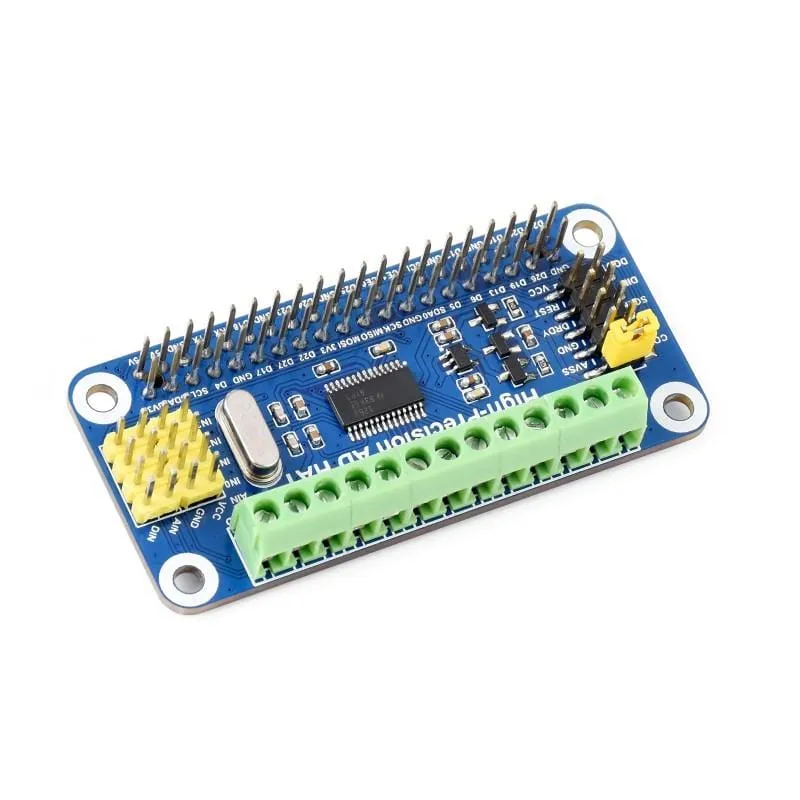

Screw terminals are provided for manually wiring the sensor inputs of your choice, whilst the GPIO headers ensure you have full access to the remaining pins for your project.
The board comes complete with standoffs to ensure a stable fit for your Raspberry Pi.
Features
- Adopts ADS1263 chip
- Low noise, low-temperature drift
- 10-ch 32-bit high precision ADC (5-ch differential input)
- 38.4kSPS Max sampling rate
- Embedded 24-bit auxiliary ADC
<
