High Brightness Red Electroluminescent (EL) Wire – 2.5 meters (High
✅ High Quality Construction
✅ No Risk – Full Refund Policy
🛍️ Lifetime Warranty Included

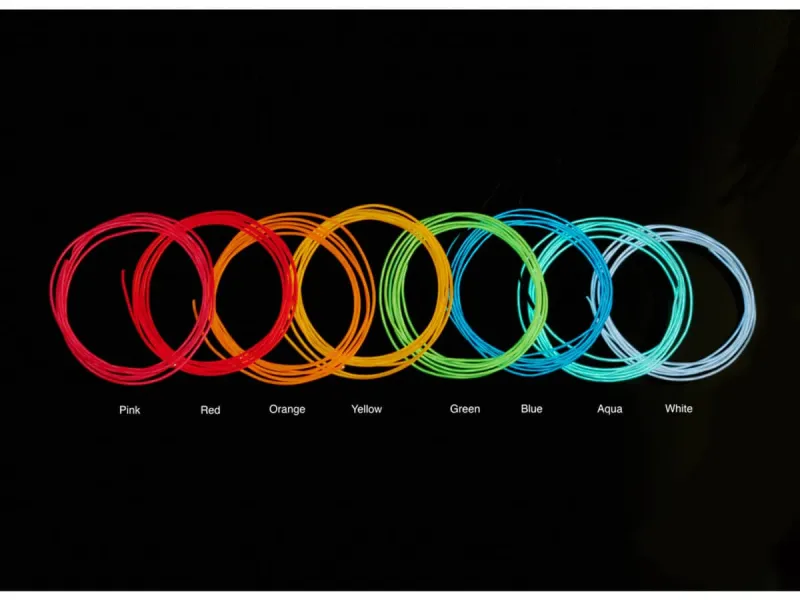

EL Wire, also known as Electroluminescent wire is a stiff wire core coated with phosphor and then covered with a protective PVC sheath. When an AC signal is applied to it, it glows an aqua (blue green) color. You can make it look different colors by changing the coating, for example this is a vivid red. It looks a little like thin neon. Very bendable, it keeps its shape and you can curl it around your finger. Its an easy way to add some glow to a project, not as bright as LEDs but uses a lot less power!

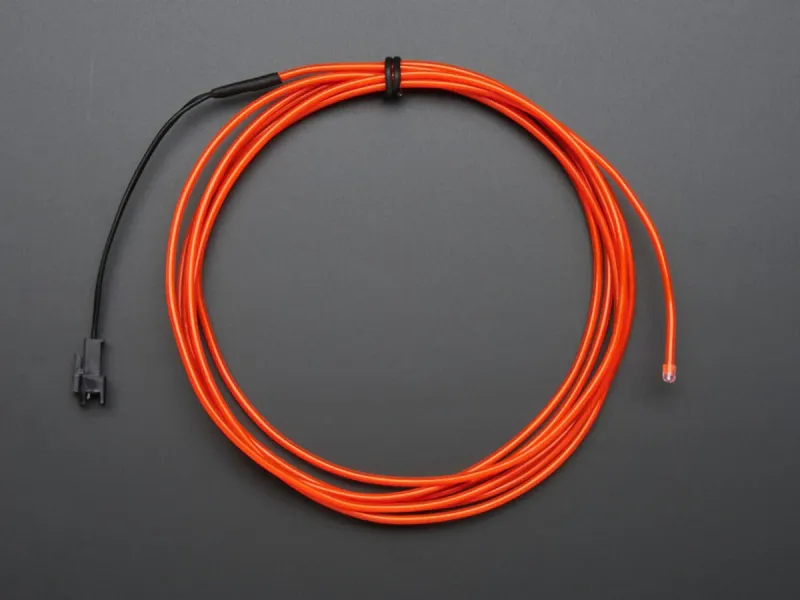

We’ve got 2.6mm thickness EL wire, with a red coat, pre-cut and soldered to a default quick-connect EL wire. It is fabricated with the latest technology and twice as bright as ‘standard’ 2.3mm EL – running it at 1.5KHz/90V it emits 32 cd/m^2 or light and a half-life (50% brightness reduction) after 3000 hours of continuous use. Draws about 10mA per meter. The capacitance is about twice that of ‘default’ EL, 11 nF/m so if you’re using an inverter, it will drive only half as much hig
