Adafruit Tiny Skinny NeoPixel Digital RGB LED Strip – 1m 60 LED/m (WHITE) [Discontinued] – Indoor/Outdoor Use

Description

Adafruit Mini Skinny NeoPixel Digital RGB LED Strip – 60 ✔ Can Be Used with LED or CFL Bulbs ✔ Includes a 5-Year Warranty 🛒 Upgrade Your Ceiling Lighting

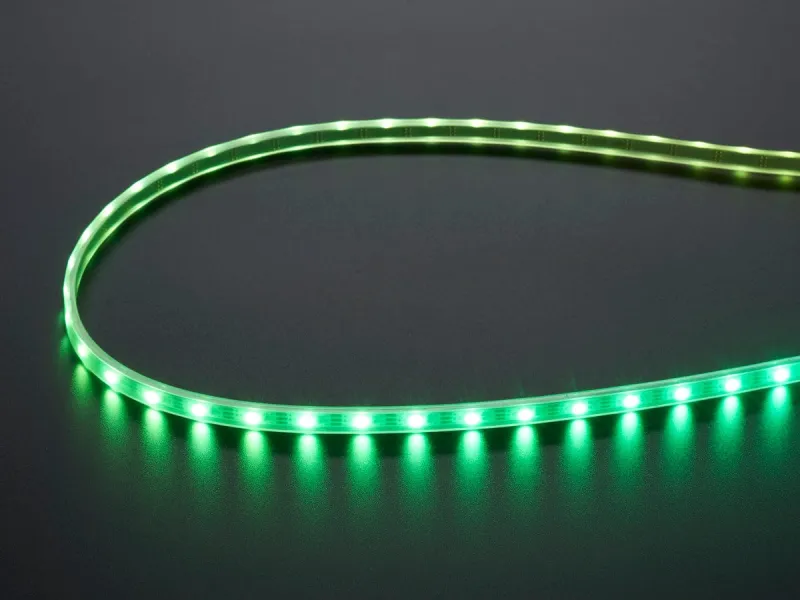

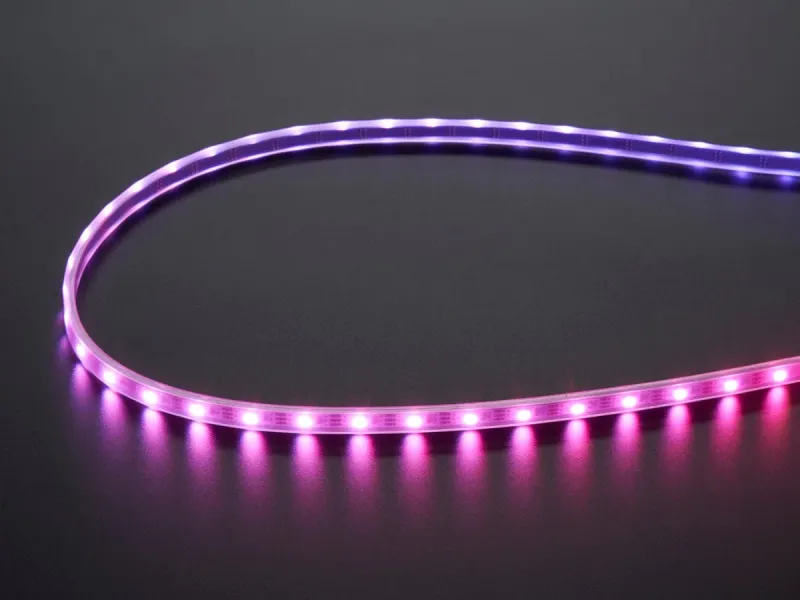

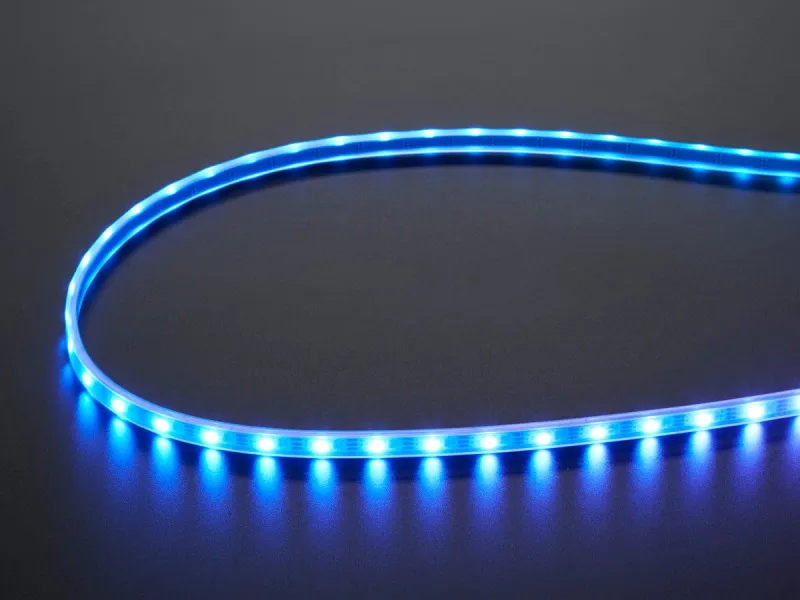

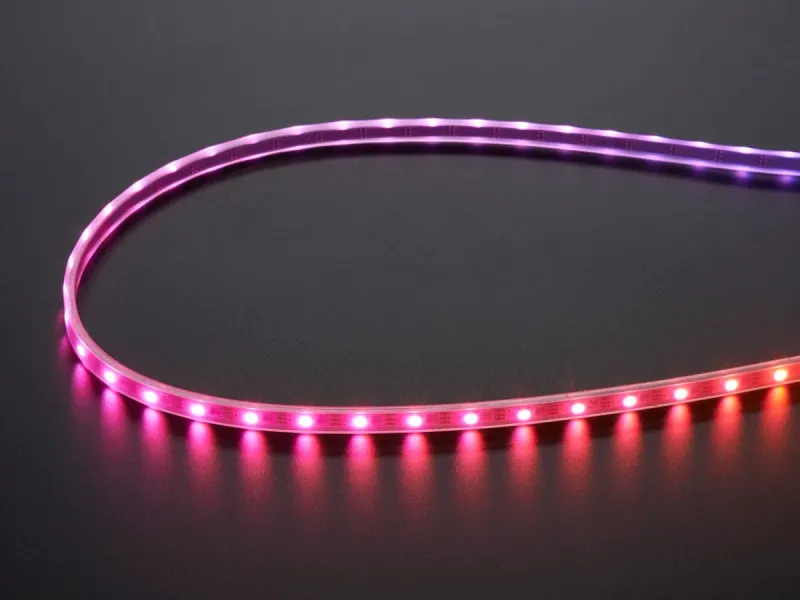

So thin. So mini. So teeeeeeny-tiny. It’s the ‘skinny’ version of our classic NeoPixel strips!

These NeoPixel strips have 60 digitally-addressable pixel Mini LEDs per meter and are extremely affordable and are only 7.5 mm wide, 5 mm if you remove the strip from the casing. This is the strip with white flex PCB, its identical to the black 60 LED/meter except it has a different color mask on the flex strip

There are some things to watch for:

• These LED’s use about 9.5 Watts max (~2 Amps @ 5V) per meter. The max rating is assuming all the LEDs are on full white, usually the actual current for colorful design is about 1/3 to 1/2 the max current. A good power supply such as our 5V 2A or 10A supply is key!
• Second, to get high density, the controller chip is inside the LED, which is kind of sleek, but also means that the chip only uses a single pin for input and a individual pin for output. The protocol used is very very timing-specific and can only be
